This 3 Panel Craftsman design provides the functional craftsman aesthetic in a pattern that sets your project apart from more common patterns.
Features
- Customize hardware preps and reinforcements for your application
- Any hinge locations
- Full range of custom heights and widths
- Both standard and custom door thicknesses
Construction Options
- Butted or hemmed, squared or beveled, seamed or seamless edge options
- Inverted or flush, top or bottom channels
- Polystyrene, steel stiffened, or temperature rise cores
- 18 gauge A60 galvannealed steel material

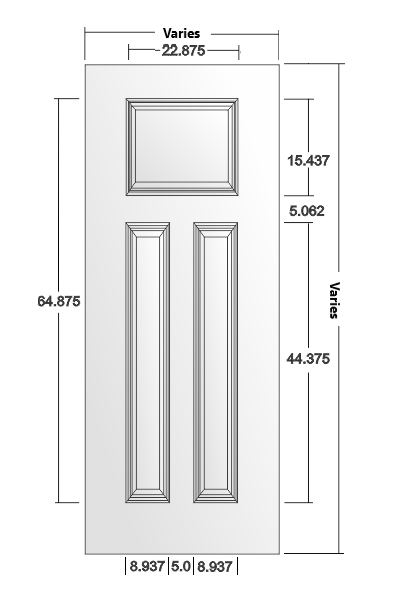

- Embossed area 22 7/8″ x 64 7/8″
- Custom stile and rail dimensions
- Minimum width (4 1/4″ stiles) is 31 3/8″
Certifications
- Fire
- Smoke
- Hose stream
Lead Time Options
- Standard: 8 to 10 business days¹
- Express: 1 to 7 business days²
¹ Consult factory for options on larger projects
² Lead time based on available capacity at time of order
Don’t see what you need here? Check out our other embossed doors or specialty doors!
