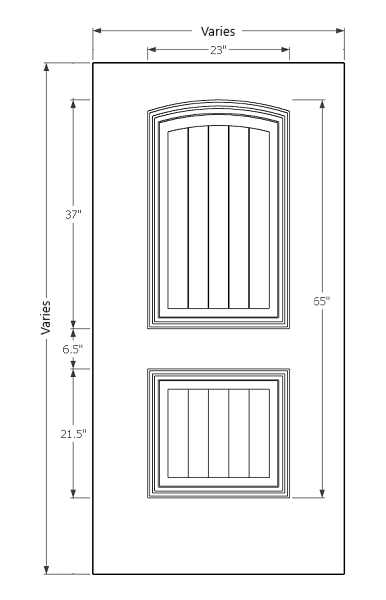

This high definition 2 panel arched top embossed door with planks adds a modern look to the commercial and fire-rated openings on your project.
Features
- Customize hardware preps and reinforcements for your application
- Any hinge locations
- Both 1 3/8″ and 1 3/4″ door thicknesses
Construction Options
- Butted or hemmed, squared or beveled, seamed or seamless edge options
- Inverted or flush, top or bottom channels
- Polystyrene core
- 18 gauge galvannealed steel material
- Minimum width with 4 1/4″ stiles is 31 1/2″
- Maximum width is 39 1/8″ (butted edge), 36 1/4″ (hemmed edge)
- Top rail maximum 6″, bottom rail maximum 13″
Certifications
- Fire
- Smoke
- Hose stream
- Sound Transmission Class (STC-38)
Lead Time Options
- Standard: 8 to 10 business days¹
- Express: 1 to 7 business days²
¹ Consult factory for options on larger projects
² Lead time based on available capacity at time of order
Don’t see what you need here? Check out our other embossed doors or specialty doors!
