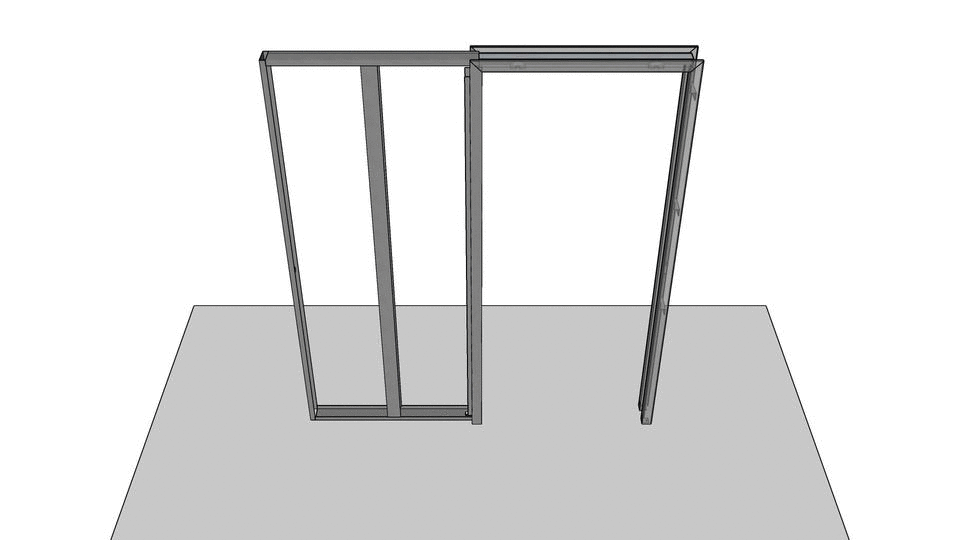

Pocket door frames

HMF Express pocket door frames are simple to install.  Take a look at the options for welded or KD pocket frames, then call our sales team about your required rough opening and frame dimensions.


  • Track and hardware by others
  • Factory primer per ANSI A250.10

Construction Options

  • KD (cage by others), welded (with cage or cage by others)
  • Single or paired
  • Steel stud, wood stud, or compression anchor options
  • 5/8″, 1-1/2″, or custom pocket channel depth in head
  • 16 or 14 gauge A60 galvannealed, cold-rolled, or G90 galvanized steel

Lead Time Options

  • Standard: 8 to 10 business days¹
  • Express: 1 to 7 business days²

¹ Consult factory for options on larger projects
² Lead time based on available capacity at time of order

Don’t see what you need here?  Check out our elevations, KD drywall systems, or specialty frames!
