No return

No return frame faces sit flush on the wall, making it easy to apply additional trim around the opening.

Features

  • No returns
  • 5/8″ stop(s)

Construction Options

  • Hinge and strike preps
  • Custom reinforcements
  • Numerous hinge locations
  • Baked-on powder coating

Additional Options

  • 3″ minimum jamb depth, 14″ maximum jamb depth

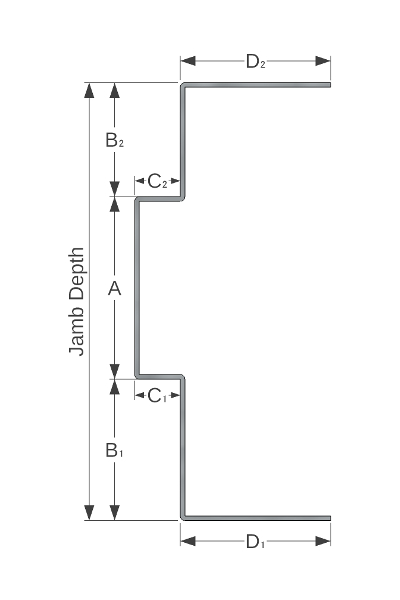

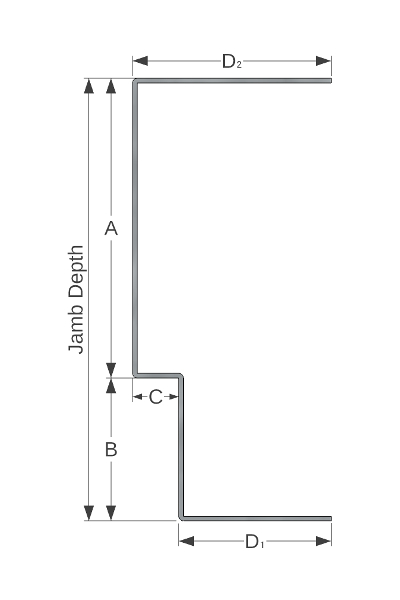

  • Cased open, double or single rabbet
  • Knock-down frames :
    • 16, 14, or 12 gauge cold rolled steel
    • 16 or 14 gauge A60 galvannealed, G90 galvanized, and stainless steel
  • Factory welded frames :
    • 16, 14, or 12 gauge A60 galvannealed, cold-rolled, G90 galvanized, and stainless steel
  • Hinge preps:
    • Double acting pivot
    • Invisible
    • Pivot
  • Strike preps:
    • 4-7/8″ strike with mortar guards
    • 4-7/8″ strike with 1-1/8″ x 2-3/4″ deadbolt with mortar guards
    • 2-3/4″ strike with 1-1/8″ x 2-3/4″ deadbolt with mortar guards
  • Welded in 12 gauge high frequency hinge reinforcement
  • Full height 16 gauge continuous hinge reinforcement
  • Lead lined
  • 4″ header
  • Hospital stops
