Things to consider

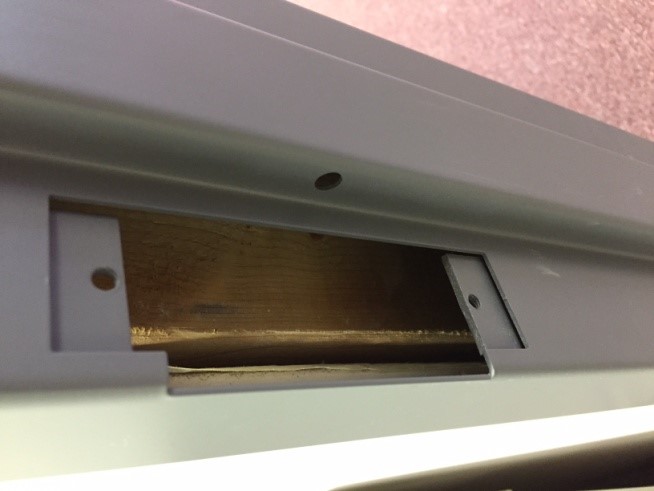

- Standard strike prep on hollow metal single frames
- Will accommodate cylindrical or mortise lock
- 4 7/8” tall, 1 1/4” wide, 3 3/8” tall lip, 12 gauge thickness, 12/24 Screw
- Standard 5/16” backset (edge of prep to frame stop)
Red flags
- 5 1/4” min. CL to CL dimension for ASA & 2 ¾” deadlock strike
- Not recommended for use on 1 3/8” Doors in 1 9/16” rabbet
 |
 |
|
| 161 Only | Frame prep |
 |
 |
|

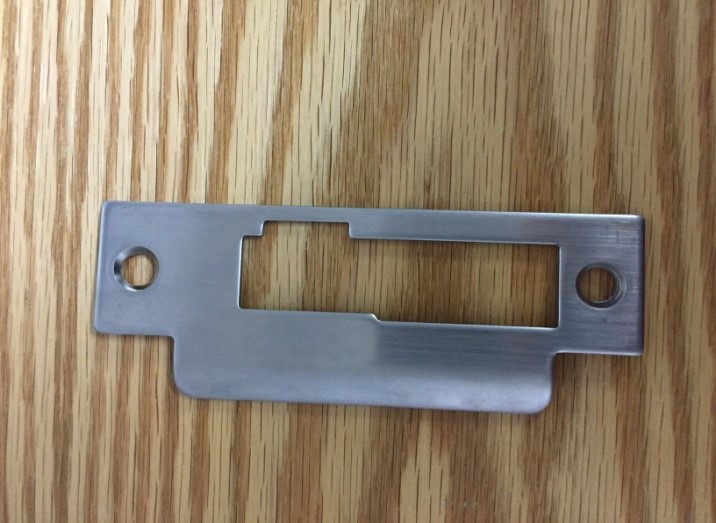

Mortise (86) Lock & corresponding ASA Strike with No Deadlock Function |
|
 |
 |
|

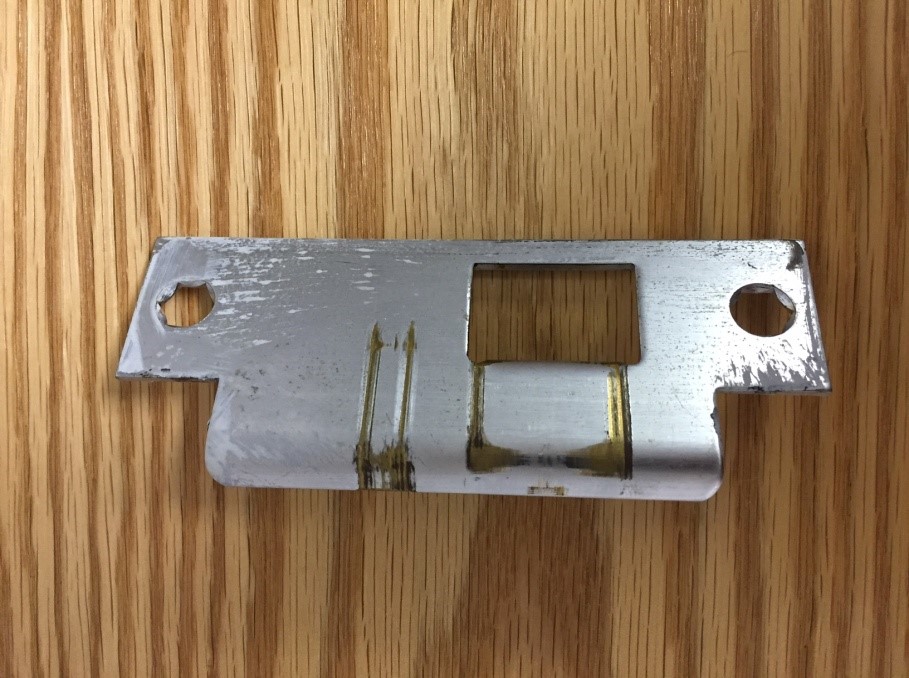

Mortise (86) Lock & corresponding ASA Strike with Deadlock Function |
|
 |
 |
|
| Mortise (86) Panic/Exit Device & corresponding ASA Strike with No Deadlock Function
(Mortise exit devices rarely have deadlock functions) |

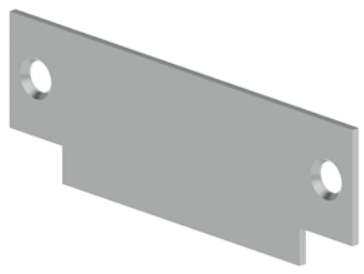

Roller Latch & Corresponding ASA Strike | ASA Blank Filler Plate (To cover ASA prep if not needed) |
