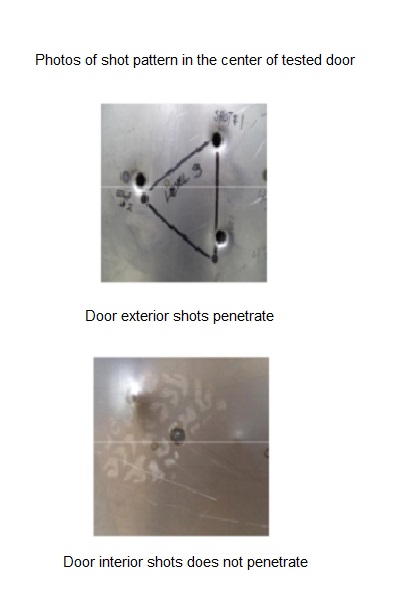

HMF Express’ a UL-752 (Ballistic) Level 3 hollow metal door. Level 3 openings resist .44 magnum lead semi-wadcutter gas checked 240 grain loads fired at a minimum 1,350 feet per second.

Features

  • Steel stiffened door with 22 gauge stiffeners
  • Seamless welded butted edge seams
  • Armor plate centered core
  • Flush single outswing only
  • High frequency reinforcements at all hinges
  • Flush welded 14 gauge top and bottom channels

Construction Options

  • Maximum door width 48″
  • Maximum door height 96″
  • Flush doors only
  • Minimum 4 each 4.5″ heavy weight hinges (3’0” x 7’0” door weighs 275 pounds)
  • Doors that exceed either 36″ in width or 84″ in height-recommend full mortise continuous hinge rated to 500 pound minimum /option for 5 each 4.5″ heavy weight hinges (4’0” x 8’0” door weighs 385 pounds)
  • 161, deadlock, mortise lock, and/or surface mounted preps available

Certifications

Lead Time Options

  • Standard: 15 business days¹ ²

¹ Consult factory for options on larger projects or expedited orders
² Lead time based on available capacity at time of order
